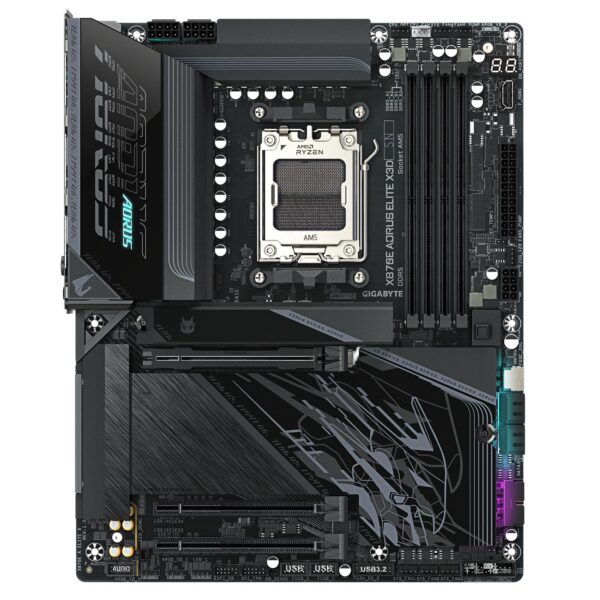

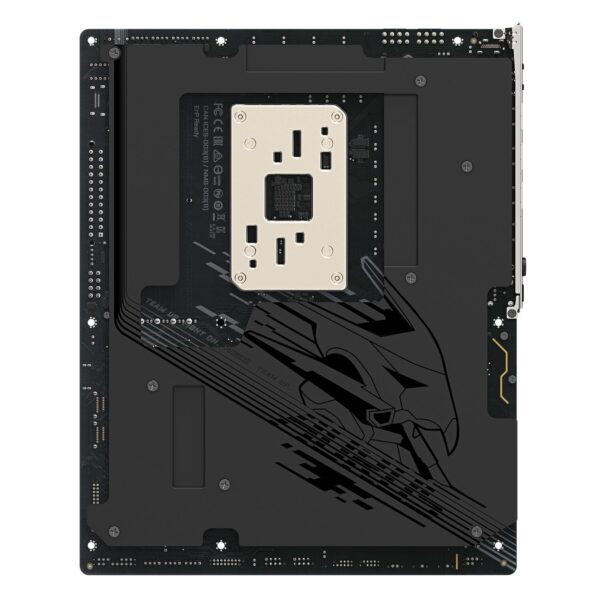

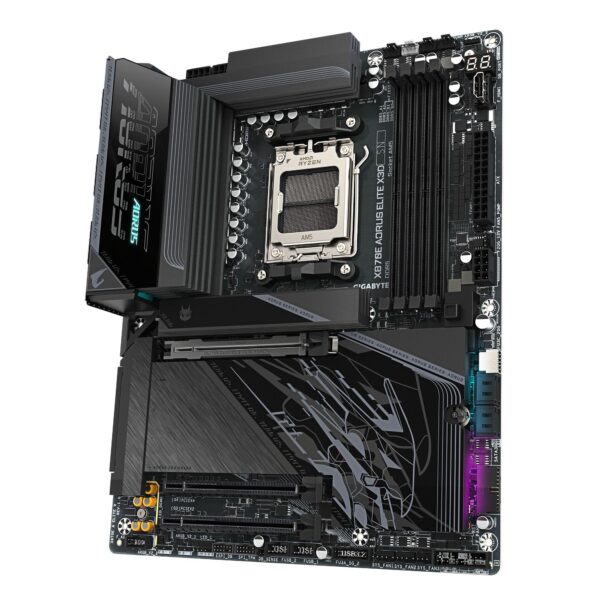

Gigabyte emaplaat X870E A ELITE X
353,52 € sis. km
Laos
Tarne 1-2 tööpäeva
Kirjeldus
Lisainfo
AMD X870E | ATX | Audio 7.1 channels | CPU AMD | Socket Socket AM5 | Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series | Supported memory types DDR5-SDRAM | 4xNumber of memory slots | Memory slots type DIMM | Supported storage drive interfaces M.2,PCI Express 4.0,PCI Express 5.0,SATA III | 4096 x 2304 pixels | 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1xEthernet LAN (RJ-45) ports | 1xHDMI ports quantity | Wi-Fi Yes | Bluetooth Yes | Antenna included Yes | Weight 2.98 kg
| Kokkuvõte | GIGABYTE X870E AORUS ELITE X3D Motherboard – Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be) |
|---|---|
| Audio chip | Realtek ALC1220-VB |
| Heli väljundkanalid (kanalid) | 7.1 |
| Komponent jaoks | PC |
| Jahutustüüp | Passive |
| Emaplaadi kiibistik | AMD X870E |
| Emaplaadi kiibistiku perekond | AMD |
| Emaplaadi vormitegur | ATX |
| Arvuti tervise jälgimine | CPU/Fan/Temperature/Voltage/Water cooling |
| Toiteallika tüüp | ATX |
| Toote värv | Black |
| Toetatud Windowsi operatsioonisüsteemid | Windows 11 x64 |
| Ühilduvad protsessori seeriad | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Protsessori tootja | AMD |
| Protsessori pesa | Socket AM5 |
| Toetatud protsessori pesad | Socket AM5 |
| ECC ühilduvus | Non-ECC |
| Maksimaalne sisemälu (GB) | 256 |
| Maximum internal memory per slot (GB) | 64 |
| Mälu kanalid | Dual-channel |
| Mälupesade tüüp | DIMM |
| Mälupesade arv | 4 |
| Toetatud mälu taktsagedus (max) (MHz) | 9000 |
| Toetatud mälu taktsagedused (MHz) | 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9000 |
| Toetatud mälutüübid | DDR5-SDRAM |
| Puhverdamata mälu | Jah |
| Toetatud kõvaketaste arv | 4 |
| Toetatud salvestusseadmete arv | 8 |
| RAID tasemed | 0/1/10/5 |
| RAID tugi | Jah |
| Toetatud mäluseadme liidesed | M.2,PCI Express 4.0,PCI Express 5.0,SATA III |
| Toetatud salvestusseadmete tüübid | HDD & SSD |
| DirectX version | 12.0 |
| HDCP | Jah |
| Maksimaalne eraldusvõime (pikslites) | 4096 x 2304 |
| Paralleeltöötluse tehnoloogia tugi | Not supported |
| ATX toitepistik (24 kontaktiga) | Jah |
| CPU ventilaatori pistik | Jah |
| EPS-i toitepistik (8-kontaktiline) | Jah |
| Esipaneeli helipistik | Jah |
| Esipaneeli pistik | Jah |
| Number of chassis fan connectors | 6 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of noise detection headers | 1 |
| Number of RGB LED pin headers | 4 |
| SATA III pistikute arv | 4 |
| Number of temperature sensor headers | 2 |
| Number of water pump connectors | 3 |
| RGB LED pin header | Jah |
| TPM pistik | Jah |
| USB 2.0 pistikud | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) pistikud | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Digital audio optical out | 1 |
| DisplayPort versioon | 1.4 |
| Etherneti LAN (RJ-45) pordid | 1 |
| HDMI-portide arv | 1 |
| HDMI versioon | 2.1 |
| Kõrvaklappide väljundid | 1 |
| Line-in | Jah |
| S/PDIF out port | Jah |
| USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide arv | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| Bluetooth | Jah |
| Bluetoothi versioon | 5.4 |
| Etherneti liidese tüüp | 2.5 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN | Jah |
| LAN controller | Realtek RTL8126 |
| Parim Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Jah |
| Wi-Fi standardid | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| WLAN controller model | Qualcomm QCNCM865 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| M.2 (M) pilude arv | 4 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| ACPI versioon | 5.0 |
| BIOS-i mälu maht (Mbit) | 512 |
| BIOS tüüp | UEFI AMI |
| Clear CMOS button | Jah |
| Clear CMOS jumper | Jah |
| Töölaua haldusliidese (DMI) versioon | 2.7 |
| Süsteemihalduse BIOS-i (SMBIOS) versioon | 2.7 |
| Aku tehnoloogia | Lithium-Manganese Dioxide (LiMnO2) |
| Aku tüüp | CR2032 |
| Aku kaal (g) | 3 |
| Liitiumi kaal aku kohta (g) | 0.07 |
| Akuelementide arv | 1 |
| Sügavus (mm) | 244 |
| Kõrgus (mm) | 35 |
| Laius (mm) | 305 |
| Antenn kaasas | Jah |
| Patareid kaasas | Jah |
| Komplekti kuuluv tarkvara | Norton® Internet Security (OEM version) |
| Kruvid kaasas | Jah |
| Kaal (g) | 2980 |
| Mudel | X870E A ELITE X |
