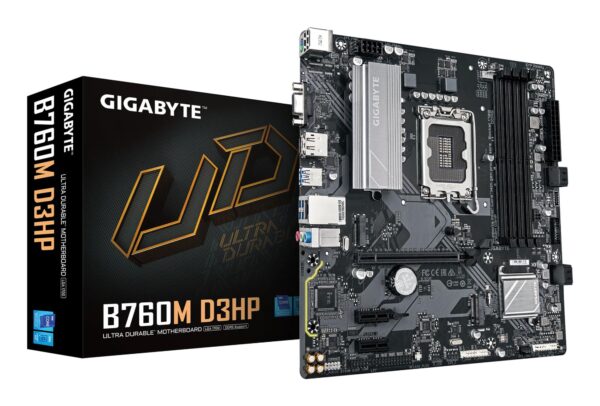

Gigabyte emaplaat B760M D3HP
Laos
Tarne 1-2 tööpäeva
Intel B760 Express | micro ATX | Audio 7.1 channels | CPU Intel | Socket LGA 1700 | Series Intel® Celeron®/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Core | Supported memory types DDR5-SDRAM | 4xNumber of memory slots | Memory slots type DIMM | Supported storage drive interfaces M.2,SATA III | 4096 x 2304 pixels | 2xUSB 2.0 ports quantity | 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1xEthernet LAN (RJ-45) ports | 1xVGA (D-Sub) ports quantity | 1xHDMI ports quantity | Weight 720 g
| Kokkuvõte | GIGABYTE B760M D3HP Motherboard – Intel Core 14th Gen CPUs, 4+1+1 Phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel…. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H |
|---|---|
| Heli väljundkanalid (kanalid) | 7.1 |
| Komponent jaoks | PC |
| Emaplaadi kiibistik | Intel B760 Express |
| Emaplaadi kiibistiku perekond | Intel |
| Emaplaadi vormitegur | micro ATX |
| Arvuti tervise jälgimine | Fan/Temperature/Voltage/Water cooling |
| Toiteallika tüüp | ATX |
| Toote värv | Brown |
| Toetatud Windowsi operatsioonisüsteemid | Windows 10/Windows 11 |
| Ühilduvad protsessori seeriad | Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron® |
| Protsessori tootja | Intel |
| Protsessori pesa | LGA 1700 |
| Toetatud protsessori pesad | LGA 1700 |
| ECC ühilduvus | ECC & Non-ECC |
| Maksimaalne sisemälu (GB) | 256 |
| Maximum internal memory per slot (GB) | 64 |
| Mälu kanalid | Dual-channel |
| Mälupesade tüüp | DIMM |
| Mälupesade arv | 4 |
| Toetatud mälu taktsagedus (max) (MHz) | 5600 |
| Toetatud mälu taktsagedused (MHz) | 4400/4800/5200/5600 |
| Toetatud mälutüübid | DDR5-SDRAM |
| Puhverdamata mälu | Jah |
| Toetatud kõvaketaste arv | 4 |
| Toetatud salvestusseadmete arv | 6 |
| RAID tasemed | 0/1/10/5 |
| RAID tugi | Jah |
| Toetatud mäluseadme liidesed | M.2,SATA III |
| Toetatud salvestusseadmete tüübid | HDD & SSD |
| DirectX version | 12.0 |
| HDCP | Jah |
| Maksimaalne eraldusvõime (pikslites) | 4096 x 2304 |
| Paralleeltöötluse tehnoloogia tugi | Not supported |
| 12V toitepistik | Jah |
| ATX toitepistik (24 kontaktiga) | Jah |
| CPU ventilaatori pistik | Jah |
| EPS-i toitepistik (8-kontaktiline) | Jah |
| Esipaneeli helipistik | Jah |
| Esipaneeli pistik | Jah |
| Number of chassis fan connectors | 3 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 2 |
| SATA III pistikute arv | 4 |
| Parallel connector | Jah |
| RGB LED pin header | Jah |
| S/PDIF out connector | Jah |
| Serial port headers | 1 |
| TPM pistik | Jah |
| USB 2.0 pistikud | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) pistikud | 2 |
| DisplayPort versioon | 1.2 |
| DisplayPorts quantity | 1 |
| Etherneti LAN (RJ-45) pordid | 1 |
| HDMI-portide arv | 1 |
| HDMI versioon | 2.1 |
| Kõrvaklappide väljundid | 1 |
| Line-in | Jah |
| Mikrofon sees | Jah |
| PS/2 portide kogus | 1 |
| USB 2.0 pesade arv | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv | 3 |
| VGA (D-Sub) portide arv | 1 |
| Etherneti liidese tüüp | Gigabit Ethernet |
| Ethernet LAN | Jah |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | Ei |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| M.2 (M) pilude arv | 2 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| ACPI versioon | 5.0 |
| BIOS-i mälu maht (Mbit) | 128 |
| BIOS tüüp | UEFI AMI |
| Clear CMOS jumper | Jah |
| Töölaua haldusliidese (DMI) versioon | 2.7 |
| Süsteemihalduse BIOS-i (SMBIOS) versioon | 2.7 |
| Aku tehnoloogia | Lithium-Manganese Dioxide (LiMnO2) |
| Aku tüüp | CR2032 |
| Aku kaal (g) | 3 |
| Liitiumi kaal aku kohta (g) | 0.07 |
| Akuelementide arv | 1 |
| Sügavus (mm) | 244 |
| Kõrgus (mm) | 35 |
| Laius (mm) | 244 |
| Patareid kaasas | Jah |
| Komplekti kuuluv tarkvara | Norton Internet Security |
| Kruvid kaasas | Jah |
| Kaal (g) | 720 |
| Mudel | B760M D3HP |
