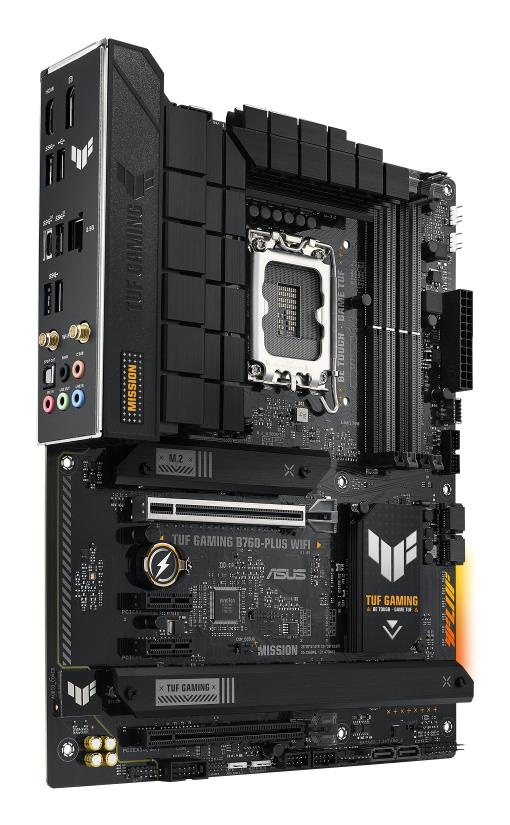

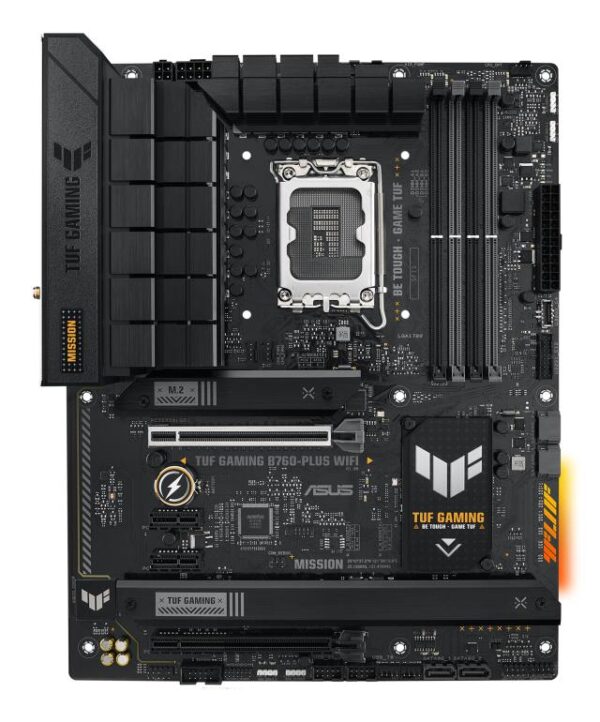

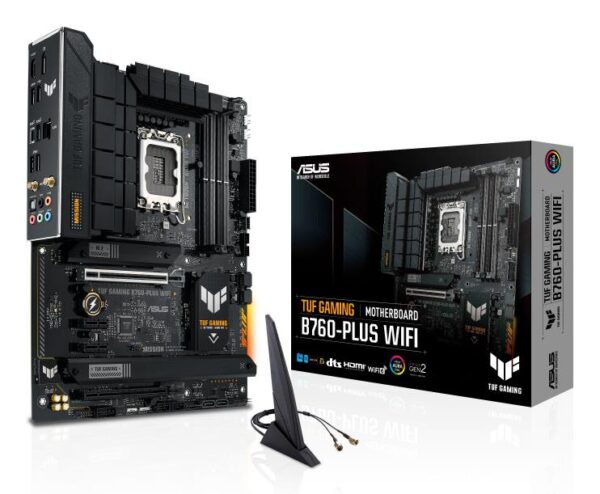

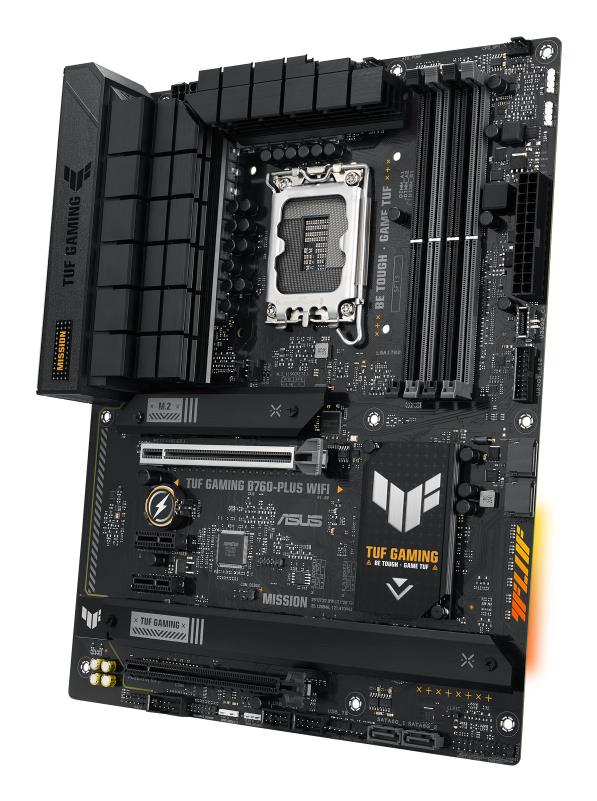

Asus emaplaat TUF GAMING B760-PLUS WIFI
154,69 € sis. km
Laos
Tarne 1-2 tööpäeva
Kirjeldus
Lisainfo
Intel B760 | ATX | Audio 7.1 channels | CPU Intel | Socket LGA 1700 | Series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7 | Supported memory types DDR5-SDRAM | 4xNumber of memory slots | Memory slots type DIMM | Supported storage drive interfaces M.2,PCI Express 3.0,PCI Express 5.0,SATA III | 2xUSB 2.0 ports quantity | 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1xEthernet LAN (RJ-45) ports | 1xVGA (D-Sub) ports quantity | 1xHDMI ports quantity | Wi-Fi Yes | Bluetooth Yes
| Kokkuvõte | ASUS TUF Gaming B760-Plus WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel |
|---|---|
| Heli väljundkanalid (kanalid) | 7.1 |
| Komponent jaoks | PC |
| Jahutustüüp | Passive |
| Emaplaadi kiibistik | Intel B760 |
| Emaplaadi kiibistiku perekond | Intel |
| Emaplaadi vormitegur | ATX |
| Toiteallika tüüp | ATX |
| Toote värv | Black |
| Toetatud Windowsi operatsioonisüsteemid | Windows 10/Windows 11 |
| Ühilduvad protsessori seeriad | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7 |
| Maximum number of SMP processors | 1 |
| Protsessori tootja | Intel |
| Protsessori pesa | LGA 1700 |
| Toetatud protsessori pesad | LGA 1700 |
| ECC ühilduvus | Non-ECC |
| Maksimaalne sisemälu (GB) | 128 |
| Mälu kanalid | Dual-channel |
| Mälupesade tüüp | DIMM |
| Mälupesade arv | 4 |
| Toetatud mälu taktsagedus (max) (MHz) | 5066 |
| Toetatud mälutüübid | DDR5-SDRAM |
| Puhverdamata mälu | Jah |
| Toetatud kõvaketaste arv | 4 |
| Toetatud salvestusseadmete arv | 7 |
| RAID tasemed | 0/1/10/5 |
| RAID tugi | Jah |
| Toetatud mäluseadme liidesed | M.2,PCI Express 3.0,PCI Express 5.0,SATA III |
| Toetatud salvestusseadmete tüübid | HDD & SSD |
| On-board graphics card | Ei |
| Paralleeltöötluse tehnoloogia tugi | Not supported |
| 12V toitepistik | Jah |
| ATX toitepistik (24 kontaktiga) | Jah |
| CPU ventilaatori pistik | Jah |
| EPS-i toitepistik (8-kontaktiline) | Jah |
| Esipaneeli helipistik | Jah |
| Esipaneeli pistik | Jah |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| SATA III pistikute arv | 4 |
| Välisseadmete (Molex) toitepistikud (4 kontaktiga) | 1 |
| RGB LED pin header | Jah |
| S/PDIF out connector | Jah |
| Thunderbolt headers | 1 |
| TPM pistik | Jah |
| USB 2.0 pistikud | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) pistikud | 2 |
| DisplayPort versioon | 1.4 |
| DisplayPorts quantity | 1 |
| Etherneti LAN (RJ-45) pordid | 1 |
| HDMI-portide arv | 1 |
| HDMI versioon | 2.1 |
| Kõrvaklappide väljundid | 1 |
| Line-in | Jah |
| USB 2.0 pesade arv | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide arv | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| VGA (D-Sub) portide arv | 1 |
| Bluetooth | Jah |
| Bluetoothi versioon | 5.2 |
| Etherneti liidese tüüp | 2.5 Gigabit Ethernet |
| Ethernet LAN | Jah |
| Parim Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Jah |
| Wi-Fi standardid | 802.11a/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
| M.2 (M) pilude arv | 3 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI slots | 4 |
| BIOS-i mälu maht (Mbit) | 128 |
| BIOS tüüp | UEFI AMI |
| Sügavus (mm) | 244 |
| Laius (mm) | 305 |
| Kaablid kaasas | SATA |
| Mudel | TUF GAMING B760-PLUS WIFI |
